Hey guys, I bought a 89si hatch shell and I got this harness with it.

Im trying to figure out what each connector goes to. This is my first obd0 88-91 civic and Im not too familiar with these harnesses. Ive done around 50 obd1& obd2 civics but this is my first obd0.

Any help would be greatly appreciated. Thanks guys








·
Premium Member
Joined
·
5,819 Posts

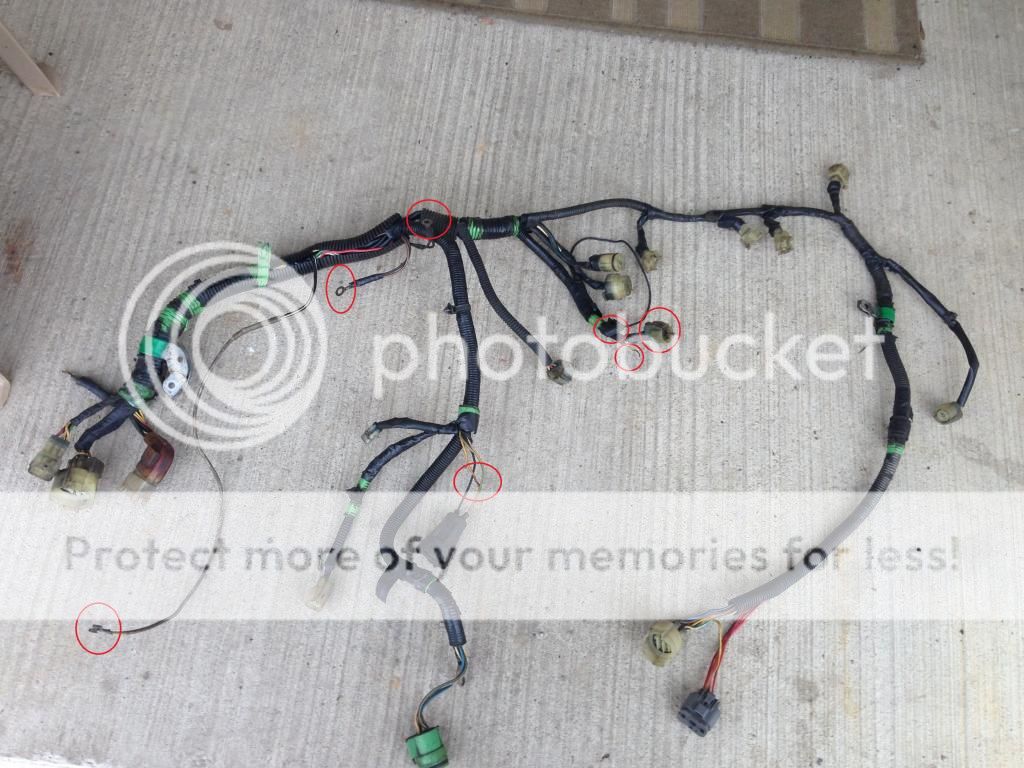

starting from the left

starter spade termial

grounds x2 ring terminals

oil psi yellow/red wire

gray single wire plug is vtec solenoid

2 wire round plug is vtec pressure switch..this could all so be the ect..hard to tell from the pic.

the single wire is for the temp gauge yellow/green wire

the wiring for vtec is for an obd1 vtec solenoid...


im pretty sure i have all this right,its a little hard to see them in the pics...theharness has been opened up and messed with...


·
Registered
Joined
·
1,043 Posts
Discussion Starter #3
starting from the left

starter spade termial

grounds x2 ring terminals

oil psi yellow/red wire

gray single wire plug is vtec solenoid

2 wire round plug is vtec pressure switch..this could all so be the ect..hard to tell from the pic.

the single wire is for the temp gauge yellow/green wire

the wiring for vtec is for an obd1 vtec solenoid...


im pretty sure i have all this right,its a little hard to see them in the pics...theharness has been opened up and messed with...


Can you text me I have more pics 8145150384

Thanks for ur help


·
Premium Member
Joined
·
5,819 Posts

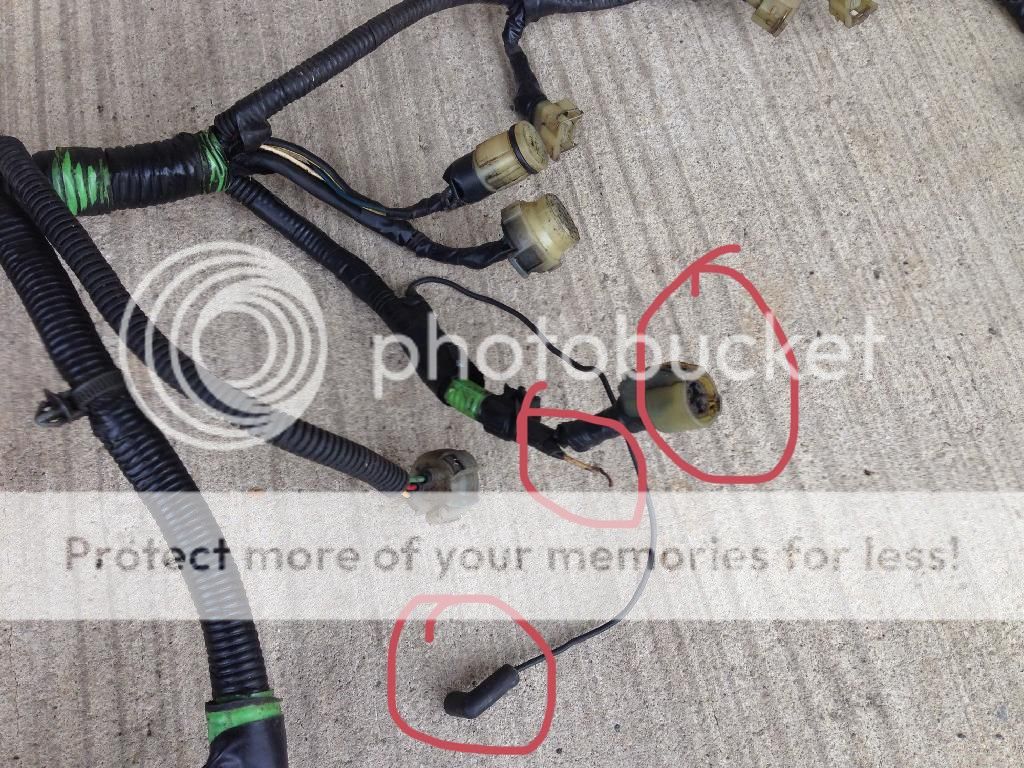

I'm wrong on the VTec as it doesn't look like it has it.

The 2nd pic the cut wire is oil psi for gauge light. The 2 wire plug I'm not sure

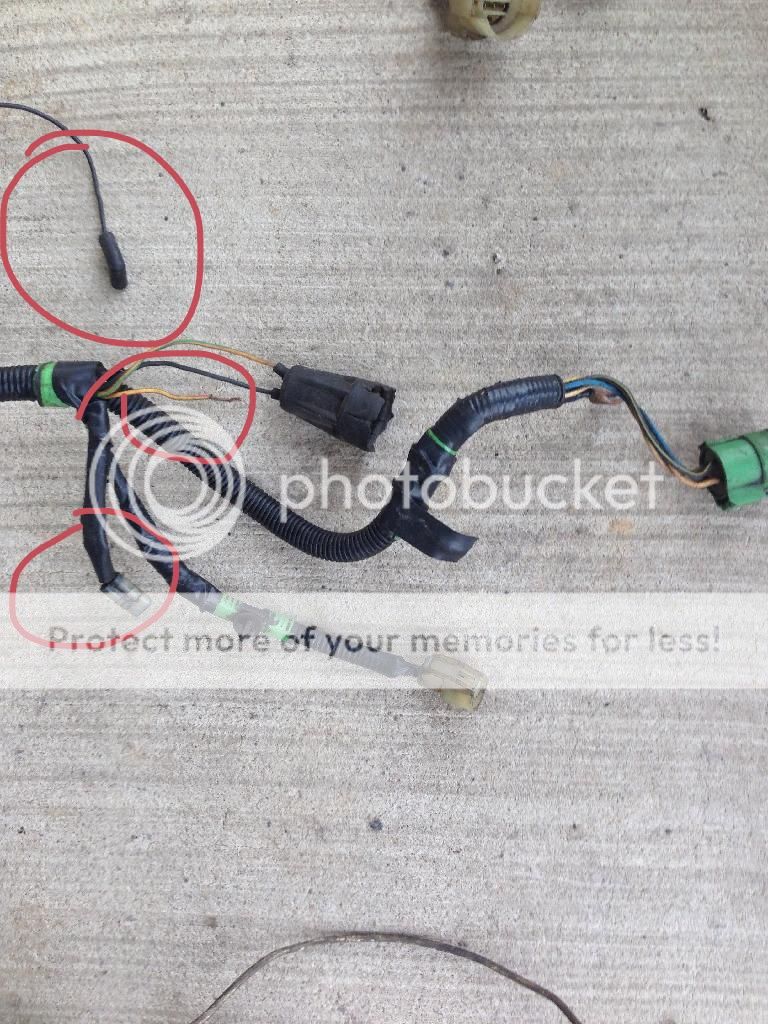

The 3rd pic the round 2 wire plug should be for the ect sensor. The cut wire is for the water temp (yellow/green)gauge on the cluster. The black wire with the 90 I'm not 100% sure, looks like some one extended the water temp wire,hard to tell
