Hi everyone
i have a d15b 3 stage stock p2j intake manifold 3 wires iacv and i need your help to know where each hose goes
I modified the photo so that you can understand what I need to know

* where does hose 1 go, the one that is over the thermostat?
*where do hoses 2 and 3 of the iacv go?
*where do hoses 4 and 5 of the connecting pipe go?(I don't know if the connecting pipe with 2 nipple is the stock in the d15b 3stage or if it uses another one with a single outlet?)

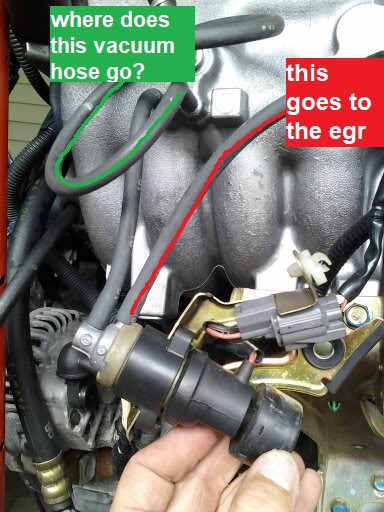

Where does the hose that comes out of the intake go? the one marked in green (or maybe it is not used in the d15b 3 stage considering that it is jdm?)
