for the EF guys - 9005 conversion

2354 Views 15 Replies 12 Participants Last post by 94z6ex, Jan 28, 2007

SOHC_Rules

Discussion Starter · Jan 24, 2007 (Edited)

8

disclaimer: im not responsible if you mess this up, do this at your own discression

the 9005 conversion is basically changing out the low beam bulbs (9006) to a 9005 bulb. this makes the low beams brighter and less yellow tinted.

objective: to swap out the 9006 headlight bulbs with a 9005 bulb.

warning: try your best not to touch the glass part of the bulb. these are halogen bulbs and burn very very hot, any grease, grime, dirt, etc on it doesnt help it any. if you cant avoid it, wipe it off as best you can. i suggest rubbing alcohol.

ok this is pretty straight forward:

step1:

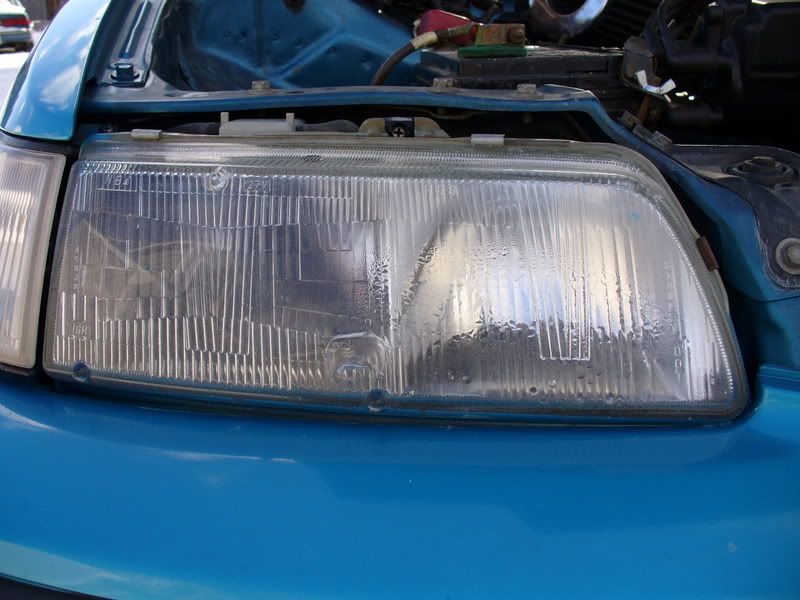

locate your low beams.. so incase you didnt know before, the low beams are on the outside

now pop ur hood and find the bulb

easy right?

step2:
in the above pic, there is a plastic holder holding the bulb in, grab hold of that thing and rotate it counterclockwise to open it up, dont try and pull it off or anything.

once it is loose, pull the 9006 bulb out. it may take some wiggling. then unplug the clip

step3:
ok now if you look down at the 2 bulbs, they have a slight difference.

uh oh the top tabs are different.. the 9006 is like this so people wont mix the bulbs up, in our case making our lives harder.. so i used this bad boy:

to cut the tab down to fit the holder thing... i used the little bump in the base of the 9005 bulb as a 'guide' sorta

step4:
now if you look at your new 9005 bulb and the 9006 side by side:

you may notice the 9006 is fatter than the 9005 is at the base. simply take the yellow o-ring off the 9006, and slide it down over the 9005 to fatten it up a bit:

See less See more

Reactions: 4

1 - 16 of 16 Posts

SOHC_Rules

Discussion Starter · #2 · Jan 24, 2007 (Edited)

4

step5:
ok now thats done, take a peek inside the clip end of the bulb...

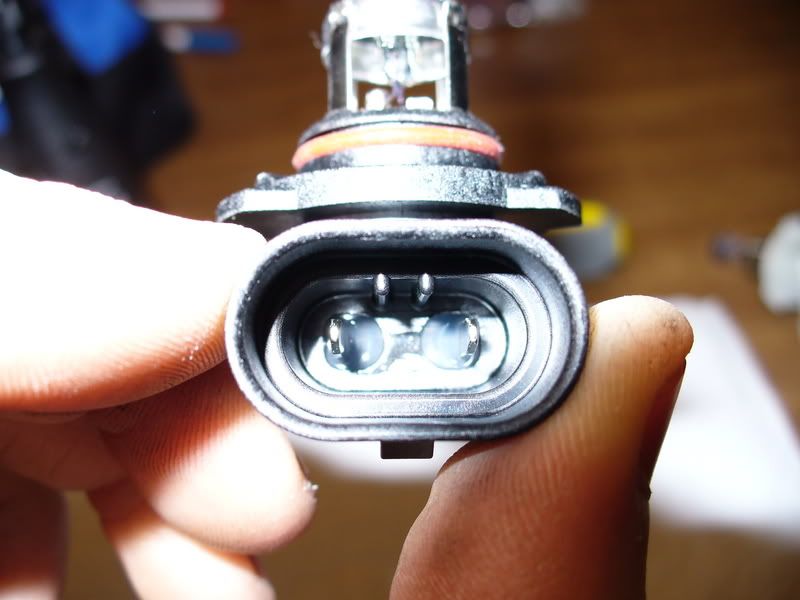

9005:

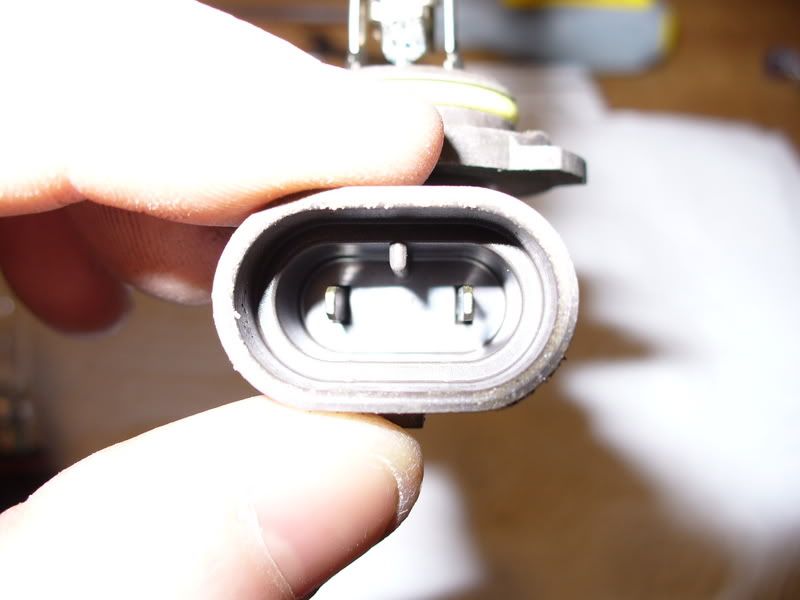

9006:

see the difference? the 9005 has 2 little prongs and the 9006 has 1, again so people dont mix the bulbs up.

now there are 2 options here. option 1 being go to a junkyard, and get the high beam clips off of another ef and solder them in place, or option 2, cut the damn things out

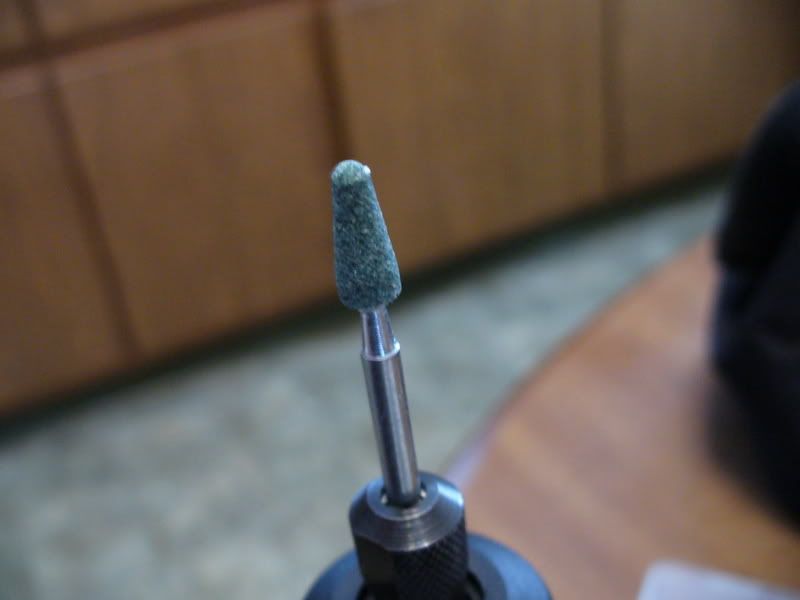

i personally chose option 2 here.. so i equipped my dremel with this:

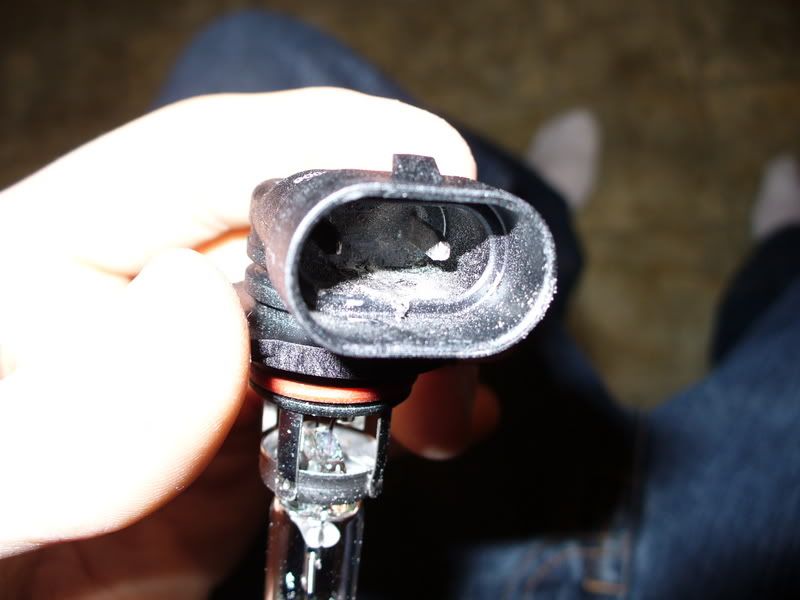

and then i cut down the 2 prongs to make it like this:

step6: reinstall the bulbs into the headlights and give them a look-see. if you looked at your lowbeams before starting this, then you will notice a difference even in the daytime

and that is it... a very simple swap took me about 20mins to do it including taking pictures.. things i used are my dremel tool with those 2 attatchments and a steak knife.. lol. the dremel tool can be replaced with a sharp knife or something (so you dont even really need tools to do this!! yay!)

enjoy :TU:

See less See more

Reactions: 1

krychek57

· #3 · Jan 24, 2007

Dude, nice

CrazyConscious

· #4 · Jan 24, 2007

Nice, but i would suggest getting a fatter o-ring rather than stacking them. We had a million different sized ones at the hardware store i used to work at.

Hatch94

· #5 · Jan 24, 2007

Nice! Quick, Easy, & little cost. If i decide to keep my 91 i mite just do this

SOHC_Rules

Discussion Starter · #6 · Jan 25, 2007

i drove with it tonight, and the difference is very noticable. definitely one thing worth doing if anything at all.

charliemopps24

· #7 · Jan 25, 2007

I did this with my crx 6 months back. I always had people flashing me to tell me i had my high beams on when i was only using my low beams. It hugely improves night vision.

MiloReaper87

· #8 · Jan 25, 2007

there is a simple way man Snip the harness dat corrisponse (I fuk up in this one) 2 the buld and u know the process solder it and plug and play baby (no clue what i said)

modsHXcivi

· #9 · Jan 25, 2007

Very nice write up.....:TU:

cryz2

· #10 · Jan 25, 2007

nice !!!!!!!! good free mod !!!!

SOHC_Rules

Discussion Starter · #11 · Jan 25, 2007

MiloReaper87 said:
there is a simple way man Snip the harness dat corrisponse (I fuk up in this one) 2 the buld and u know the process solder it and plug and play baby (no clue what i said)

yes, this was option 1 in my write up.. lol

cryz2 said:
nice !!!!!!!! good free mod !!!!

it actually cost me about 12 dollars for 2 new 9005 bulbs.

cryz2

· #12 · Jan 25, 2007

SOHC_Rules said:
yes, this was option 1 in my write up.. lol

it actually cost me about 12 dollars for 2 new 9005 bulbs.

lololol well you know what i mean by free !!!!!!!!!! the work you done was free

dw8

· #13 · Jan 25, 2007

I've done this twice without changing any o-rings. Still works fine.

Speedjunky01

· #14 · Jan 27, 2007

you woman ebay HID's

.

j/k man good job on the write up thx for taking the time.

Reactions: 1

Import Al

· #15 · Jan 27, 2007 (Edited)

Nice write up. :TU: I did this upgrade a while back and its a noticeable improvement and very easy to do.

If you run a quality 9005 bulb like Sylvania Silverstar Ultras or something similar, you don't really need to use the high beams much any more. Just make sure they are aimed level and not too high with a brighter than stock bulb.

Reactions: 1

94z6ex

· #16 · Jan 28, 2007

great write up!!!!! :TU:

Reactions: 1
