Discussion Starter #1 (Edited)
There's a pretty good write up on H-T but not a lot of pictures showing how people are making the bezel/trim to cover the gap. So here is a more descriptive step by step on how I made MY bezel.

1) AP1/AP2 Cluster - I got mines free! They usually go for around 250-300 with harness.
2) Material for the bezel - I used a thin sheet metal i found laying around.
3) Extra EK/EJ cluster - Thanks to vtec_bomber free of charge. You can use your old one if you don't care.

The AP1 cluster.



Stock cluster



Take the clear plastic lens off. It's held on by clips, just push them in and pull on the plastic lens.



Next do the same thing with the black housing.

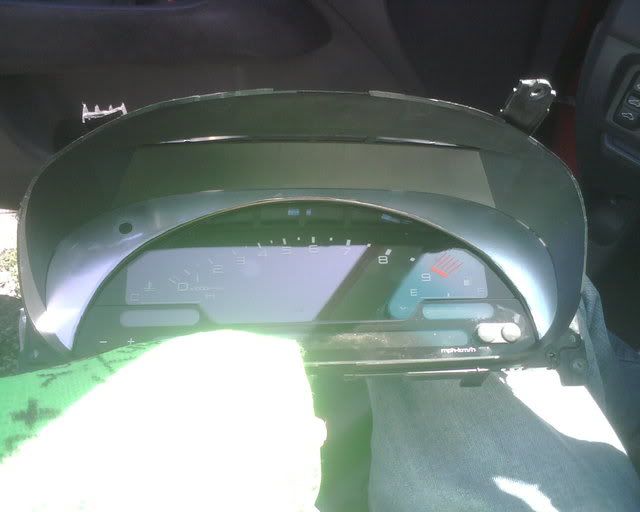

Now put the stock black housing on top of the AP1 cluster. Surprisingly it fits damn well.





This is how it should look like with the dash cover on.



Making the bezel to cover the extra space.

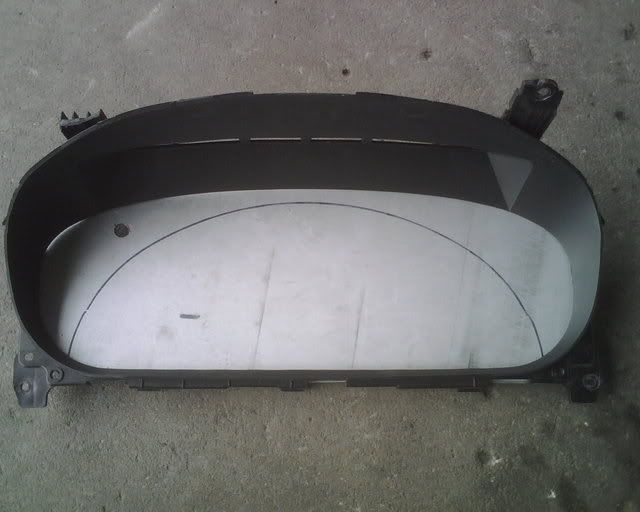

Trace the material of your choice according to the stock black housing.



·
Registered
Joined
·
1,201 Posts
Discussion Starter #2 (Edited)

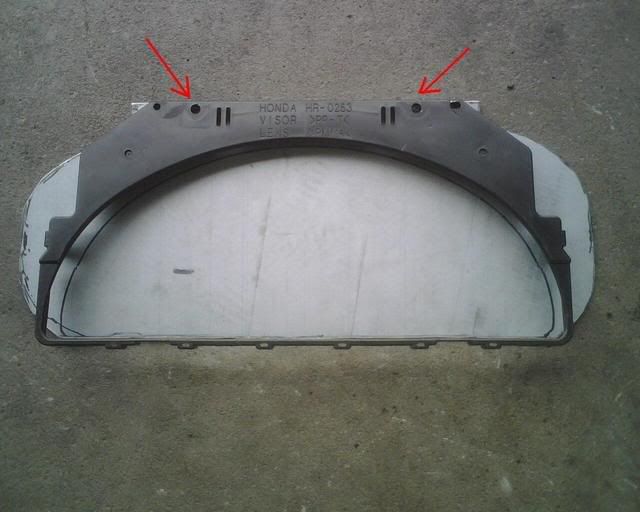

In order to get the trace of the ap1 bezel, i removed it using the same method, from the ap1 cluster and traced it onto the sheet.



The bezel should fit tight into the stock housing.





Note you will need to drill 2 holes on the bezel to mount the bezel onto the ap1 cluster.

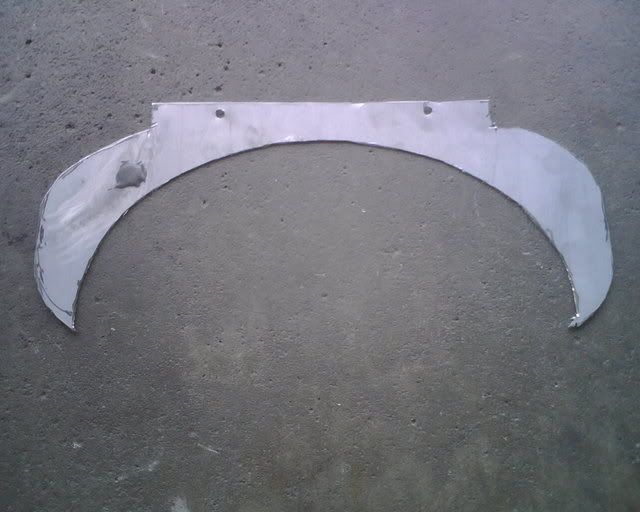

Bezel cut, then sanded with 320 grit.

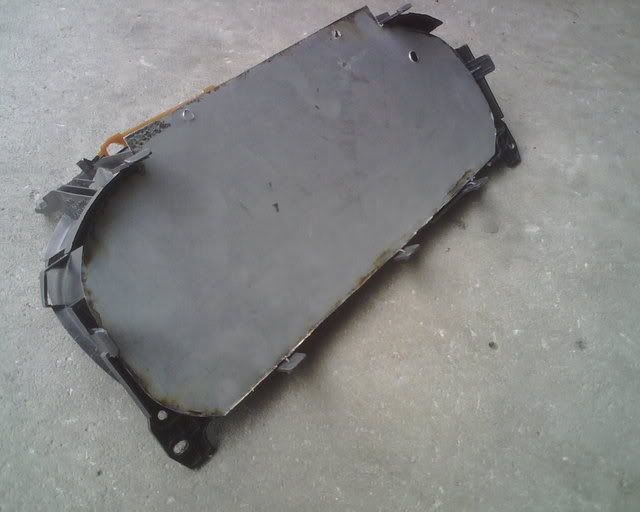

Screw on the bezel onto the cluster via the previously drilled holes and then fit the black housing on.

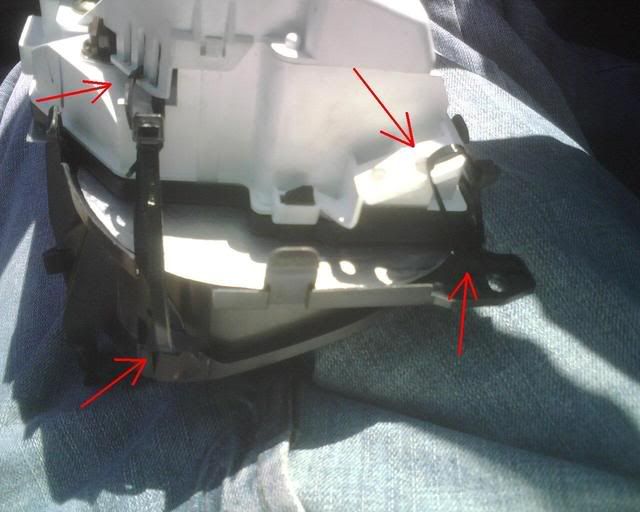

Secure the housing onto the ap1 cluster (i used zip ties). On the other side too.



·
Registered
Joined
·
1,201 Posts
Discussion Starter #3 (Edited)
After test fitting it i realized that the ap1 cluster is actually thicker than the stock one. It was hitting the air duct so i had to cut an H to make more room. I also duct taped it to seal the vent.

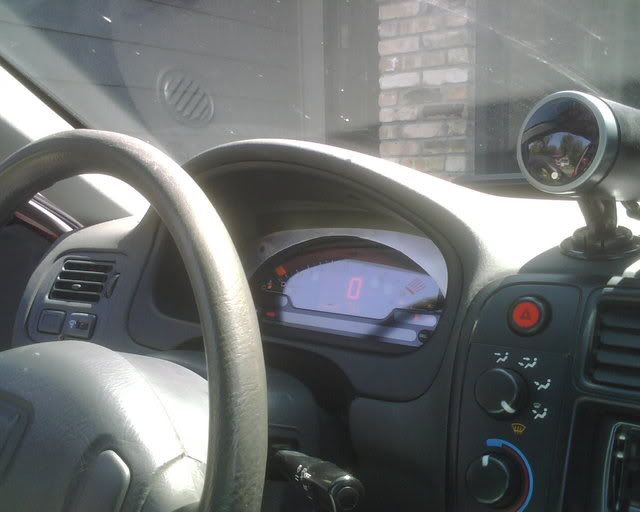

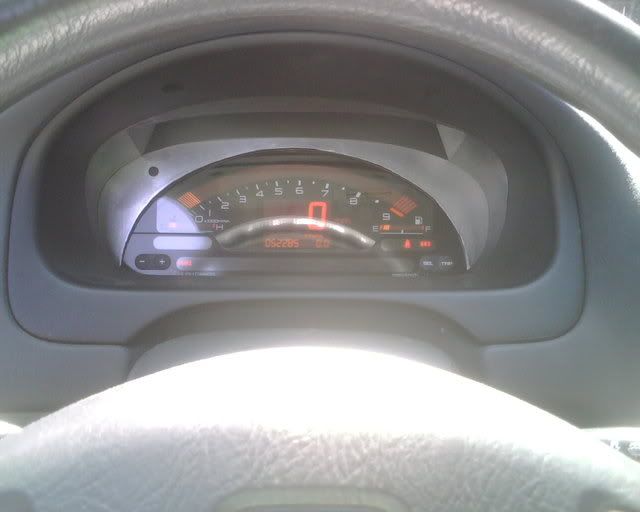

After that ordeal put everything back. It's a tight fit but enjoy your new AP1 Cluster and Bezel. It will soon be painted flat black another day!!







And the link for the Video! Enjoy!
http://www.youtube.com/watch?v=uZizFhu-jW8


·
Registered
Joined
·
354 Posts
damn thats pretty neat, definately waiting for the rest of the write up


·
Lurking... ಠ_ಠ In Your Thread
ES1 Civic
Joined
·
11,969 Posts
Nice!


·
Registered
90' crx duh?
Joined
·
246 Posts
This is the baddest thing since sliced bread. I'm putting one in my rex. but first i have to find an s2k and steal his gauge cluster...


·
Registered
Joined
·
1,201 Posts
Discussion Starter #20
nice, very nice!
great stuff, rep for you
Thanks guys!

I need MOAR! haha you should take a vid of it in action :td:
I just got done wiring it all up, will have pictures and videos of final product.

and for the EG?!?!?
Sorry, i dont have an EG but i do have a friend that has one and wants to do the same. Whenever he does his i can take pictures and post up on here.

This is the baddest thing since sliced bread. I'm putting one in my rex. but first i have to find an s2k and steal his gauge cluster...
lol, but thanks

Nice man!

gonna look sick when its done!
Yep, thats the plan!
